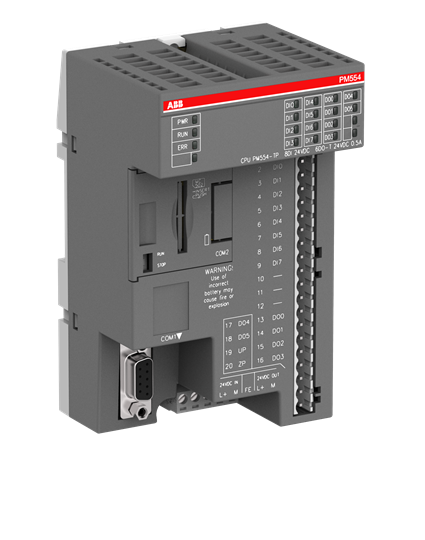

PM554-TP

PM554-TP

share

PM554-TP

  • Detail
  • Parameters

PM554-TP

一般信息

  • 扩展产品类型:
    PM554-TP
  • 产品编号:
    1SAP120600R0001
  • ABB 型号名称:
    PM554-TP
  • 国际货品编码:
    4016779878678
  • 目录说明:
    PM554-TP:AC500,程控器
  • 详细描述:
    PM554-TP:AC500,可编程控制器,128kB,8DI/6DO-T,24VDC,1xRS485,2x选项插槽

使用地点(作为“套件”的一部分)

订购

  • 原产地:
    中国 (CN)
    德国 (DE)
    芬兰 (FI)
  • CN8:
    85371091
  • 发票说明:
    PM554-TP:AC500,程控器
  • 定制:

  • 最小起订量:
    1件
  • 订购倍数:
    1件
  • 销售计量单位:

方面

  • 产品净重:
    0.281公斤
  • 产品净深/长度:
    74毫米
  • 产品净高:
    135毫米
  • 产品净宽:
    82毫米
  • 总重量:
    0.439公斤

技术的

  • 硬件接口数量:
    工业以太网 0
    其他 0
    并行 0
    RS-232 0
    RS-422 0
    RS-485 1
    串行 TTY 0
    USB 0
    无线 0
  • 内存大小:
    142 KB
  • 内存类型用户数据:
    内存
  • 控制器处理时间:
    0.00008 毫秒
  • 数字输入数量:
    8
  • 数字输出数量:
    6
  • 数字可配置 I/O 数量:
    0
  • 输入电压类型:
    直流
  • 电源电压:
    20.4 … 28.8 伏直流电

附加信息

  • 产品主要类型:
    PM554
  • 产品名称:
    分布式自动化 PLC

分类

  • 电子课程:
    2007年24月27日
  • EPLAN 目录树:
    电气工程/PLC/综合
  • ETIM 8:
    EC000236 - PLC CPU 模块
  • 联合国社会保障委员会:
    32151705

环境的

  • SCIP:
    dda255f9-3e1d-449d-9aaa-fbd39a7c6770 德国 (DE)
  • WEEE B2C / B2B:
    企业与企业之间
  • 废弃电子电气设备类别:
    5、小型设备(外形尺寸不超过50厘米)

PM554-TP

General Information

  • Extended Product Type:
    PM554-TP
  • Product ID:
    1SAP120600R0001
  • ABB Type Designation:
    PM554-TP
  • EAN:
    4016779878678
  • Catalog Description:
    PM554-TP:AC500,Prog.Logic Controller
  • Long Description:
    PM554-TP:AC500,Prog.Logic Controller ,128kB,8DI/6DO-T,24VDC, 1xRS485,2xOption Slot

Where Used (as part of "kit")

Ordering

  • Country of Origin:
    China (CN)
    Germany (DE)
    Finland (FI)
  • CN8:
    85371091
  • Invoice Description:
    PM554-TP:AC500,Prog.Logic Controller
  • Made To Order:
    No
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Selling Unit of Measure:
    piece

Dimensions

  • Product Net Weight:
    0.281 kg
  • Product Net Depth / Length:
    74 mm
  • Product Net Height:
    135 mm
  • Product Net Width:
    82 mm
  • Gross Weight:
    0.439 kg

Technical

  • Number of Hardware Interfaces:
    Industrial Ethernet 0
    Other 0
    Parallel 0
    RS-232 0
    RS-422 0
    RS-485 1
    Serial TTY 0
    USB 0
    Wireless 0
  • Memory Size:
    142 kB
  • Memory Type User Data:
    RAM
  • Controller Processing Time:
    0.00008 ms
  • Number of Digital Inputs:
    8
  • Number of Digital Outputs:
    6
  • Number of Digital Configurable I/Os:
    0
  • Input Voltage Type:
    DC
  • Supply Voltage:
    20.4 … 28.8 V DC

Additional Information

  • Product Main Type:
    PM554
  • Product Name:
    Distributed Automation PLCs

Classifications

  • eClass:
    27-24-22-07
  • EPLAN Catalog Tree:
    Electrical engineering / PLC / General
  • ETIM 8:
    EC000236 - PLC CPU-module
  • UNSPSC:
    32151705

Environmental

  • SCIP:
    dda255f9-3e1d-449d-9aaa-fbd39a7c6770 Germany (DE)
  • WEEE B2C / B2B:
    Business To Business
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)


category
PLC
brand
ABB
Power supply voltage
DC24V
