CI522-MODTCP 1SAP222200R0001

  • Detail
  • Parameters

CI522-MODTCP

General Information

  • Extended Product Type:
    CI522-MODTCP
  • Product ID:
    1SAP222200R0001
  • ABB Type Designation:
    CI522-MODTCP
  • EAN:
    4013614485930
  • Catalog Description:
    Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI522-MODTCP)
  • Long Description:
    CI522-MODTCP: S500 Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.

Categories

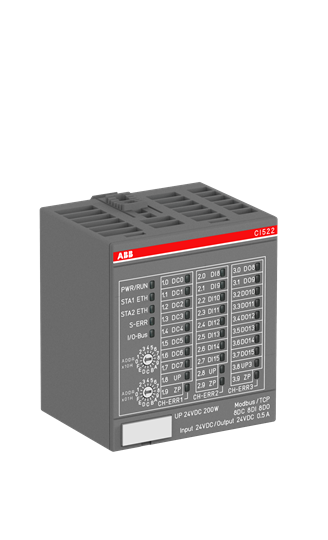

  • CI522-MODTCP - image 0

Ordering

  • Country of Origin:
    Germany (DE)
    Finland (FI)
  • CN8:
    85389091
  • Invoice Description:
    Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI522-MODTCP)
  • Made To Order:
    No
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Selling Unit of Measure:
    piece

Dimensions

  • Product Net Weight:
    0.133 kg
  • Product Net Depth / Length:
    62 mm
  • Product Net Height:
    76 mm
  • Product Net Width:
    67.5 mm
  • Gross Weight:
    0.157 kg
  • Package Level 1 Depth / Length:
    84 mm
  • Package Level 1 Height:
    72 mm
  • Package Level 1 Width:
    71 mm
  • Package Level 1 Units:
    1 carton

Technical

  • Function:
    Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
  • Number of Hardware Interfaces:
    Industrial Ethernet 0
    Other 0
    Parallel 0
    RS-232 0
    RS-422 0
    RS-485 0
    Serial TTY 0
    USB 0
    Wireless 0
  • Analog Inputs:
    0
  • Analog Outputs:
    0
  • Number of Digital Inputs:
    8
  • Number of Digital Outputs:
    8
  • Number of Digital Configurable I/Os:
    8
  • Input Voltage Type:
    DC
  • Input Voltage (Uin):
    24 V DC
  • Input Current:
    5 mA
  • Delay Time (τ):
    0.1 … 32 ms
  • Output:
    Transistor
  • Output Voltage Type:
    DC
  • Output Current:
    0.5 A
  • Output Voltage Maximum:
    20.4 … 28.8 V
  • Degree of Protection:
    IP20
  • Supply Voltage:
    20.4 ... 28.8 V DC

Additional Information

  • Product Main Type:
    CI522
  • Product Name:
    Distributed Automation I/Os

Classifications

  • eClass:
    27-24-26-07
  • EPLAN Catalog Tree:
    Electrical engineering / PLC / General
  • ETIM 8:
    EC001604 - Fieldbus, decentr. periphery - communication module
  • UNSPSC:
    32151705

Environmental

  • SCIP:
    5e0cc729-178b-43ca-a669-26bfda8af2de Germany (DE)
  • WEEE B2C / B2B:
    Business To Business
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

CI522-MODTCP

概要信息

  • 产品型号:
    CI522-MODTCP
  • 产品ID:
    1SAP222200R0001
  • ABB型号名称:
    CI522-MODTCP
  • 欧洲商品编号(EAN):
    4013614485930
  • 目录说明:
    Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI522-MODTCP)
  • 详细描述:
    CI522-MODTCP: S500 Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.

分类

  • CI522-MODTCP - image 0

订货信息

  • 原产地:
    Germany (DE)
    Finland (FI)
  • CN8:
    85389091
  • 发票说明:
    Interface module. Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI522-MODTCP)
  • 按订单生产:
    No
  • 最小起订量:
    1 piece
  • 订单倍数:
    1 piece
  • 销售度量单位:
    piece

尺寸

  • 产品净重:
    0.133 kg
  • 产品净深:
    62 mm
  • 产品净高:
    76 mm
  • 产品净宽:
    67.5 mm
  • 毛重:
    0.157 kg
  • 1级包装长度:
    84 mm
  • 1级包装高度:
    72 mm
  • 1级包装宽度:
    71 mm
  • 1级包装单元:
    1 carton

技术参数

  • 功能:
    Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
  • 硬件接口数量:
    Industrial Ethernet 0
    Other 0
    Parallel 0
    RS-232 0
    RS-422 0
    RS-485 0
    Serial TTY 0
    USB 0
    Wireless 0
  • 模拟输入:
    0
  • 模拟输出:
    0
  • 数字输入数量:
    8
  • 数字输出数量:
    8
  • 数字配置I/O数量:
    8
  • 输入电压类型:
    DC
  • 输入电压 (Uin):
    24 V DC
  • 输入电流:
    5 mA
  • 延迟时间 (τ):
    0.1 … 32 ms
  • 输出:
    Transistor
  • 输出电压类型:
    DC
  • 输出电流:
    0.5 A
  • 最大输出电压:
    20.4 … 28.8 V
  • 防护等级:
    IP20
  • 供电电压:
    20.4 ... 28.8 V DC

其他信息

  • 产品系列:
    CI522
  • 产品:
    Distributed Automation I/Os

分类

  • e级:
    27-24-26-07
  • EPLAN目录树:
    Electrical engineering / PLC / General
  • ETIM 8:
    EC001604 - Fieldbus, decentr. periphery - communication module
  • UNSPSC:
    32151705

环境条件

  • SCIP:
    5e0cc729-178b-43ca-a669-26bfda8af2de Germany (DE)
  • WEEE B2C / B2B:
    Business To Business
  • WEEE 类别:
    5. Small Equipment (No External Dimension More Than 50 cm)
