1SAP111100R0270 TB511-ETH
1SAP111100R0270 TB511-ETH
1SAP111100R0270 TB511-ETH
- Detail
- Parameters
TB511-ETH
General Information
- Extended Product Type:
- TB511-ETH
- Product ID:
- 1SAP111100R0270
- ABB Type Designation:
- TB511-ETH
- EAN:
- 4016779680868
- Catalog Description:

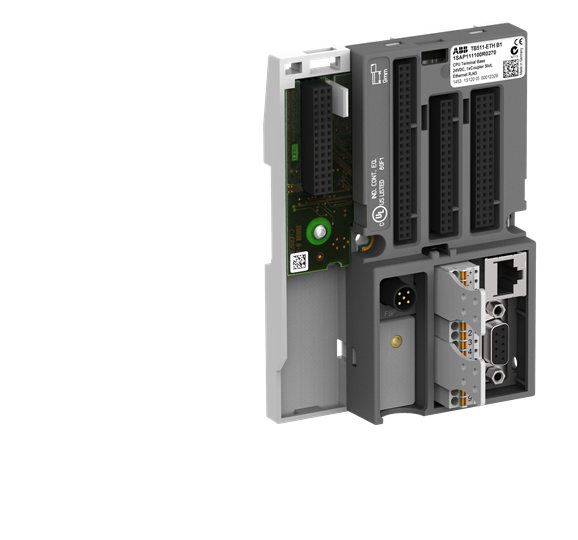

- Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
- Long Description:
- TB511-ETH: AC500 Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485.
Categories
Products » PLC Automation » Programmable Logic Controllers PLCs » AC500 » CPUs
Where Used (as part of "kit")
Ordering
- Country of Origin:
- Germany (DE)
United States (US)
Finland (FI)
- CN8:
- 85389091
- Invoice Description:
- Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
- Made To Order:
- No
- Minimum Order Quantity:
- 1 piece
- Order Multiple:
- 1 piece
- Selling Unit of Measure:
- piece
Dimensions
- Product Net Weight:
- 0.159 kg
- Product Net Depth / Length:
- 28 mm
- Product Net Height:
- 135 mm
- Product Net Width:
- 95.5 mm
- Gross Weight:
- 0.215 kg
- Package Level 1 Depth / Length:
- 147 mm
- Package Level 1 Height:
- 40 mm
- Package Level 1 Width:
- 131 mm
- Package Level 1 Units:
- 1 carton
Technical
- Function:
- For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
- Communication Interface:
- D-SUB/RJ45/Terminals
- Input Voltage Type:
- DC
- Degree of Protection:
- IP20
- Supply Voltage:
- 24 V DC
- Ambient Air Temperature:
- Operation 0 ... +60 °C
Storage -40 ... +70 °C
Additional Information
- Product Main Type:
- TB511
- Product Name:
- Distributed Automation PLCs
Classifications
- eClass:
- 27-24-22-92
- EPLAN Catalog Tree:
- Electrical engineering / PLC / General
- ETIM 8:
- EC000810 - PLC mounting rack
- UNSPSC:
- 32151703
Environmental
- SCIP:
- a6c04b4a-b9a6-4a06-910c-402defa687f6 Germany (DE)
- WEEE B2C / B2B:
- Business To Business
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
TB511-ETH
概要信息
- 产品型号:
- TB511-ETH
- 产品ID:
- 1SAP111100R0270
- ABB型号名称:
- TB511-ETH
- 欧洲商品编号(EAN):
- 4016779680868
- 目录说明:
- Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
- 详细描述:
- TB511-ETH: AC500 Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485.
分类
产品 » 可编程控制器 自动化 » PLCs » AC500 » CPUs
用在哪里
订货信息
- 原产地:
- Germany (DE)
United States (US)
Finland (FI)
- CN8:
- 85389091
- 发票说明:
- Terminal base. For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
- 按订单生产:
- No
- 最小起订量:
- 1 piece
- 订单倍数:
- 1 piece
- 销售度量单位:
- piece
尺寸
- 产品净重:
- 0.159 kg
- 产品净深:
- 28 mm
- 产品净高:
- 135 mm
- 产品净宽:
- 95.5 mm
- 毛重:
- 0.215 kg
- 1级包装长度:
- 147 mm
- 1级包装高度:
- 40 mm
- 1级包装宽度:
- 131 mm
- 1级包装单元:
- 1 carton
技术参数
- 功能:
- For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
- 通讯接口:
- D-SUB/RJ45/Terminals
- 输入电压类型:
- DC
- 防护等级:
- IP20
- 供电电压:
- 24 V DC
- 周围环境温度:
- Operation 0 ... +60 °C
Storage -40 ... +70 °C
其他信息
- 产品系列:
- TB511
- 产品:
- Distributed Automation PLCs
分类
- e级:
- 27-24-22-92
- EPLAN目录树:
- Electrical engineering / PLC / General
- ETIM 8:
- EC000810 - PLC mounting rack
- UNSPSC:
- 32151703
环境条件
- SCIP:
- a6c04b4a-b9a6-4a06-910c-402defa687f6 Germany (DE)
- WEEE B2C / B2B:
- Business To Business
- WEEE 类别:
- 5. Small Equipment (No External Dimension More Than 50 cm)
category
PLC
brand
ABB
