ACS880-01-145A-2

General Information

  • Global Commercial Alias:
    ACS880-01-145A-2
  • Product ID:
    3AUA0000137242
  • ABB Type Designation:
    ACS880-01-145A-2
  • EAN:
    6438177558675
  • Catalog Description:
    ACS880-01-145A-2 PN: 37 kW, IN: 145 A
  • Long Description:
    The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.

    The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.

Categories

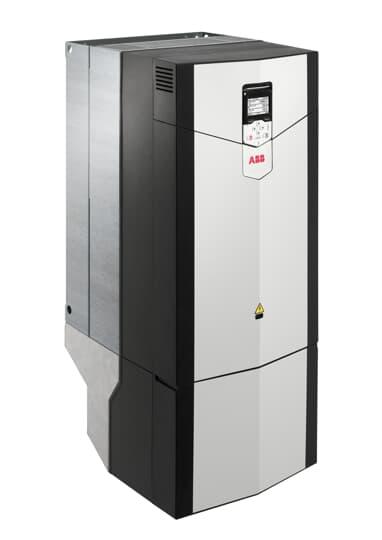

  • ACS880-01-145A-2 - image 0

Ordering

  • Country of Origin:
    Finland (FI)
  • Customs Tariff Number:
    85044086
  • Invoice Description:
    ACS880-01-145A-2 PN: 37 kW, IN: 145 A
  • Made To Order:
    Yes
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Selling Unit of Measure:
    piece

Container Information

  • Gross Volume:
    65.404 dm³

Dimensions

  • Product Net Weight:
    42.2 kg
    93.035 lb
  • Product Net Depth / Length:
    357 mm
    14.055 in
  • Product Net Height:
    727 mm
  • Product Net Width:
    252 mm
    9.921 in
  • Package Level 1 Depth / Length:
    880 mm
  • Package Level 1 Height:
    536 mm
  • Package Level 1 Width:
    335 mm
  • Package Level 1 Units:
    1 carton

Technical

  • Number of Phases:
    3
  • Degree of Protection:
    IP21
  • Enclosure Type NEMA:
    Type1
  • Altitude:
    4000 m
  • Sound dB (A):
    68 dB(A)
  • Frequency (f):
    47.5 ... 63 Hz
  • Frame Size:
    R6
  • Input Voltage (Uin):
    208 ... 240 V
  • Mounting Type:
    Wall-mounted
  • Communication Protocol:
    CAN
    DeviceNet
    EtherNet/IP
    MODBUS
    Other Bus Systems
    PROFIsafe
    PROFIBUS
    PROFINET IO
  • Number of Hardware Interfaces:
    Industrial Ethernet 0
    Other 4
    Parallel 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 1
    Serial TTY 0
    USB 1
  • Includes:
    Control unit
    PC connection
  • Analog Inputs:
    2
  • Analog Outputs:
    2
  • Number of Digital In/Outputs:
    6 / 2
  • Output Current, Heavy-Duty Use (IHD):
    105 A
  • Output Current, Light-Overload Use (ILD):
    138 A
  • Output Current, Normal Use (In):
    145 A
  • Output Power, Heavy-Duty Use (PHD):
    30.0 kW
  • Output Power, Light-Overload Use (PLD):
    37 kW
  • Output Power, Normal Use (Pn):
    37 kW
  • Apparent Power Output:
    58 kV·A
  • Efficiency Level:
    IE2
  • Standby Loss:
    49 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    0 / 25 %430 W0.7 %88.0 %
    0 / 50 %620 W1.1 %90.7 %
    0 / 100 %1174 W2.0 %91.0 %
    50 / 25 %476 W0.8 %93.2 %
    50 / 50 %718 W1.2 %94.6 %
    50 / 100 %1401 W2.4 %94.7 %
    90 / 50 %876 W1.5 %96.3 %
    90 / 100 %1935 W3.4 %95.9 %
  • Temperature Rating:
    Maximum 40 °C

Additional Information

  • Product Main Type:
    ACS880-01
  • Product Name:
    Frequency converter

Classifications

  • Product Series:
    ACS880
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

Environmental

  • SCIP:
    428347a2-99a8-416d-bd41-e4467b8babee Finland (FI)
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

ACS880-01-145A-2

概要信息

  • 全球商业别名:
    ACS880-01-145A-2
  • 产品ID:
    3AUA0000137242
  • ABB型号名称:
    ACS880-01-145A-2
  • 欧洲商品编号(EAN):
    6438177558675
  • 目录说明:
    ACS880-01-145A-2 PN：37 kW，IN：145 A
  • 详细描述:
    ACS880-01 变频器经过定制，可满足特定行业的特殊需求，例如石油和天然气、采矿、金属、化工、水泥、发电厂、物料搬运、纸浆和造纸、锯木厂、船舶、水和废水处理、食品和饮料行业。饮料、汽车等。它们可以控制广泛的应用，包括起重机、挤出机、绞车、卷绕机、输送机、搅拌机、压缩机、离心机、测试台、电梯、挤出机、泵和风扇。

    ACS880-01 采用紧凑的封装，易于安装和调试。该变频器可以标准安装在墙上，也可以选择安装在机柜中。该驱动器产品包括高达 IP55 的外壳等级，使其适合大多数环境和安装。ACS880-01 变频器内置了所有基本功能。这些功能包括标准的谐波滤波扼流圈以及制动斩波器、EMC 滤波器和通信协议适配器、功能安全、外部输出滤波器和 I/O 扩展模块等选件。

分类

  • ACS880-01-145A-2 - 图片 0

订货信息

  • 原产地:
    芬兰 (FI)
  • 海关关税号:
    85044086
  • 发票说明:
    ACS880-01-145A-2 PN：37 kW，IN：145 A
  • 按订单生产:
    是的
  • 最小起订量:
    1件
  • 订单倍数:
    1件
  • 仅报价:
    不
  • 销售度量单位:
    片

包装信息

  • 总容积:
    65.404 立方分米

尺寸

  • 产品净重:
    42.2千克
    93.035 磅
  • 产品净深:
    357毫米
    14.055 英寸
  • 产品净高:
    727毫米
  • 产品净宽:
    252毫米
    9.921 英寸
  • 1级包装长度:
    880毫米
  • 1级包装高度:
    536毫米
  • 1级包装宽度:
    335毫米
  • 1级包装单元:
    1 箱

技术参数

  • 相数：
    3
  • 防护等级:
    IP21
  • 外壳防护等级:
    类型1
  • 海拔:
    4000米
  • 噪声级dB（A):
    68分贝(A)
  • 频率 (f):
    47.5 ... 63 赫兹
  • 外形尺寸:
    R6
  • 输入电压 (Uin):
    208 ... 240 伏
  • 安装类型:
    壁挂式
  • 通讯协议:
    CAN
    DeviceNet
    EtherNet/IP
    MODBUS
    其他总线系统
    PROFIsafe
    PROFIBUS
    PROFINET IO
  • 硬件接口数量:
    工业以太网 0
    其他 4
    并行 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 1
    串行 TTY 0
    USB 1
  • 包含:
    Control unit
    PC connection
  • 模拟输入:
    2
  • 模拟输出:
    2
  • 数字输入/输出数量:
    6 / 2
  • 输出电流，重载应用 (IHD):
    105 A
  • 输出电流，轻过载应用 (ILD):
    138 A
  • 输出电流，正常应用 (In):
    145 A
  • 输出电流，重载应用 (PHD):
    30.0 kW
  • 输出电流，轻过载应用 (PLD):
    37 kW
  • 输出电流，正常应用 (Pn):
    37 kW
  • 视在功率输出:
    58 kV·A
  • 效率水平:
    IE2
  • 待机损耗:
    49 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    0 / 25 %430 W0.7 %88.0 %
    0 / 50 %620 W1.1 %90.7 %
    0 / 100 %1174 W2.0 %91.0 %
    50 / 25 %476 W0.8 %93.2 %
    50 / 50 %718 W1.2 %94.6 %
    50 / 100 %1401 W2.4 %94.7 %
    90 / 50 %876 W1.5 %96.3 %
    90 / 100 %1935 W3.4 %95.9 %
  • 额定温度:
    Maximum 40 °C

其他信息

  • 产品系列:
    ACS880-01
  • 产品:
    Frequency converter

分类

  • 产品系列:
    ACS880
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

环境条件

  • SCIP:
    428347a2-99a8-416d-bd41-e4467b8babee Finland (FI)
  • WEEE 类别:
    4. 大型设备（任何外部尺寸超过50厘米）
