ACS150-01E-06A7-2

General Information

  • Global Commercial Alias:
    ACS150-01E-06A7-2
  • Product ID:
    68581974
  • ABB Type Designation:
    ACS150-01E-06A7-2
  • EAN:
    6410038079338
  • Catalog Description:
    ACS150-01E-06A7-2 Pn 1,1kW, I2n 6,7A IP20
  • Long Description:
    The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps. The ACS150 drives have an integrated user panel, potentiometer and a variety of features such as pre-defined connection macros, making drive selection and configuration easy. With an optional FlashDrop tool these drives can be configured quickly in volume.

Categories

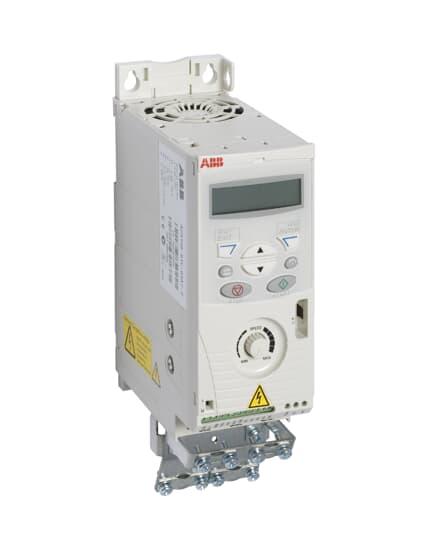

  • ACS150-01E-06A7-2 - image 0

Ordering

  • Country of Origin:
    China (CN)
    Finland (FI)
  • Customs Tariff Number:
    85044085
  • Invoice Description:
    ACS150-01E-06A7-2 Pn 1,1kW, I2n 6,7A IP20
  • Made To Order:
    No
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Selling Unit of Measure:
    piece

Dimensions

  • Product Net Weight:
    1.4 kg
  • Product Net Depth / Length:
    142 mm
  • Product Net Height:
    239 mm
  • Product Net Width:
    70 mm
  • Package Level 1 Depth / Length:
    345 mm
  • Package Level 1 Height:
    130 mm
  • Package Level 1 Width:
    215 mm
  • Package Level 1 Units:
    1 carton

Technical

  • Number of Phases:
    1
  • Degree of Protection:
    IP20
  • Enclosure Type NEMA:
    Open Type
  • Frequency (f):
    50/60 Hz
  • Frame Size:
    R1
  • Input Voltage (Uin):
    200 ... 240 V
  • Mounting Type:
    Module for cabinet building
  • Number of Hardware Interfaces:
    Industrial Ethernet 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 0
    Serial TTY 0
    USB 0
    Parallel 0
    Other 1
  • Includes:
    With control unit
    Without optical interface
    With PC connection
  • Analog Inputs:
    1
  • Analog Outputs:
    0
  • Number of Digital In/Outputs:
    5/0
  • Output Current, Light-Overload Use (ILD):
    6.7 A
  • Output Current, Normal Use (In):
    6.7 A
  • Output Power, Light-Overload Use (PLD):
    1.1 kW
  • Output Power, Normal Use (Pn):
    1.1 kW
  • Apparent Power Output:
    2.7 kV·A
  • Efficiency Level:
    IE2
  • Standby Loss:
    11 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    90 / 100 %77 W2.9 %96.1 %
    50 / 100 %66 W2.5 %94.1 %
    0 / 100 %59 W2.2 %89.5 %
    90 / 50 %52 W2.0 %95.1 %
    50 / 50 %47 W1.8 %92.3 %
    50 / 25 %39 W1.5 %88.2 %
    0 / 50 %44 W1.6 %86.2 %
    0 / 25 %38 W1.4 %79.0 %
  • Temperature Rating:
    Maximum 40 °C
  • Ecodesign Exemption:
    Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).

Additional Information

  • Product Main Type:
    ACS150
  • Product Name:
    Frequency converter

Classifications

  • Product Series:
    ACS150
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

Environmental

  • SCIP:
    f90aa954-edeb-434f-894f-d90ec5e22a8c Finland (FI)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

ACS150-01E-06A7-2

概要信息

  • 全球商业别名:
    ACS150-01E-06A7-2
  • 产品ID:
    68581974
  • ABB型号名称:
    ACS150-01E-06A7-2
  • 欧洲商品编号(EAN):
    6410038079338
  • 目录说明:
    ACS150-01E-06A7-2 Pn 1,1kW, I2n 6,7A IP20
  • 详细描述:
    The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps. The ACS150 drives have an integrated user panel, potentiometer and a variety of features such as pre-defined connection macros, making drive selection and configuration easy. With an optional FlashDrop tool these drives can be configured quickly in volume.

分类

  • ACS150-01E-06A7-2 - image 0

订货信息

  • 原产地:
    China (CN)
    Finland (FI)
  • 海关关税号:
    85044085
  • 发票说明:
    ACS150-01E-06A7-2 Pn 1,1kW, I2n 6,7A IP20
  • 按订单生产:
    No
  • 最小起订量:
    1 piece
  • 订单倍数:
    1 piece
  • 仅报价:
    No
  • 销售度量单位:
    piece

尺寸

  • 产品净重:
    1.4 kg
  • 产品净深:
    142 mm
  • 产品净高:
    239 mm
  • 产品净宽:
    70 mm
  • 1级包装长度:
    345 mm
  • 1级包装高度:
    130 mm
  • 1级包装宽度:
    215 mm
  • 1级包装单元:
    1 carton

技术参数

  • 相数:
    1
  • 防护等级:
    IP20
  • 外壳防护等级:
    Open Type
  • 频率 (f):
    50/60 Hz
  • 外形尺寸:
    R1
  • 输入电压 (Uin):
    200 ... 240 V
  • 安装类型:
    Module for cabinet building
  • 硬件接口数量:
    Industrial Ethernet 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 0
    Serial TTY 0
    USB 0
    Parallel 0
    Other 1
  • 包含:
    With control unit
    Without optical interface
    With PC connection
  • 模拟输入:
    1
  • 模拟输出:
    0
  • 数字输入/输出数量:
    5/0
  • 输出电流，轻过载应用 (ILD):
    6.7 A
  • 输出电流，正常应用 (In):
    6.7 A
  • 输出电流，轻过载应用 (PLD):
    1.1 kW
  • 输出电流，正常应用 (Pn):
    1.1 kW
  • 视在功率输出:
    2.7 kV·A
  • 效率水平:
    IE2
  • 待机损耗:
    11 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    90 / 100 %77 W2.9 %96.1 %
    50 / 100 %66 W2.5 %94.1 %
    0 / 100 %59 W2.2 %89.5 %
    90 / 50 %52 W2.0 %95.1 %
    50 / 50 %47 W1.8 %92.3 %
    50 / 25 %39 W1.5 %88.2 %
    0 / 50 %44 W1.6 %86.2 %
    0 / 25 %38 W1.4 %79.0 %
  • 额定温度:
    Maximum 40 °C
  • 生态设计豁免:
    Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).

其他信息

  • 产品系列:
    ACS150
  • 产品:
    Frequency converter

分类

  • 产品系列:
    ACS150
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

环境条件

  • SCIP:
    f90aa954-edeb-434f-894f-d90ec5e22a8c Finland (FI)
  • WEEE 类别:
    5. Small Equipment (No External Dimension More Than 50 cm)


类别
变频器
品牌
ABB
