6SL3210-5BE27-5UV0
6SL3210-5BE27-5UV0
6SL3210-5BE27-5UV0
- 产品详情
- 产品参数
驱动技术》AC 变频器》低压变频器》常规变频器》 SINAMICS G》SINAMICS V20 基本型变频器
| 产品 | ||
| 商品编号(市售编号) | 4042948665176 | 6SL3210-5BE27-5UV0 | |
| 产品说明 | SINAMICS V20 380-480V 3AC -15/+10 % 47-63Hz 标称功率 7.5kW 有 60 秒 150 % 过载 未过滤 I/O：4 DI，2 DO，2 AI，1 个模拟输出 现场总线：USS/MODBUS RTU 安装有基本操作面板 保护：IP20/ UL 开放 尺寸：D 240x207x173（宽x高x深） | |
| 产品家族 | SINAMICS V20 基本型变频器 | |
| 产品生命周期 (PLM) | PM300:有效产品 | |
| 价格数据 | ||
| 价格组 / 总部价格组 | KW / 350 | |
| 列表价（不含税） | 显示价格 | |
| 您的单价（不含税） | 显示价格 | |
| 金属系数 | 无 | |
| 交付信息 | ||
| 出口管制规定 | AL : N / ECCN : N | |
| 工厂生产时间 | 5 天 | |
| 净重 (Kg) | 3.790 Kg | |
| 包装尺寸 | 270.00 x 290.00 x 230.00 | |
| 包装尺寸单位的测量 | MM | |
| 数量单位 | 1 件 | |
| 包装数量 | 1 | |
| 其他产品信息 | ||
| EAN | 6940408102811 | |
| UPC | 未提供 | |
| 商品代码 | 8504409999 | |
| LKZ_FDB/ CatalogID | SINAMICS V20 | |
| 产品组 | 5681 | |
| 组代码 | R220 | |
| 原产地 | 中国 | |
| Compliance with the substance restrictions according to RoHS directive | RoHS 合规开始日期: 2010.07.05 | |
| 产品类别 | C: 产品制造/生产到订单，无法重复使用或再利用，也不能通过信用退货。 | |
| 电气和电子设备使用后的收回义务类别 | - | |
| REACH Art. 33 责任信息 | ||
| ||
| Product | ||
| Article Number (Market Facing Number) | 4042948665176 | 6SL3210-5BE27-5UV0 | |

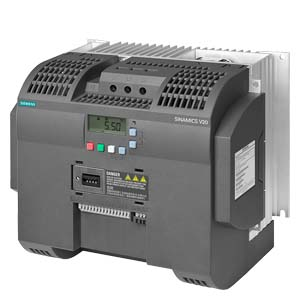

| Product Description | SINAMICS V20 380-480 V 3 AC -15/+10% 47-63Hz rated power 7.5 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: D 240x207x173 (WxHxD) | |
| Product family | SINAMICS V20 basic converters | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group / Headquarter Price Group | KW / 350 | |
| List Price (w/o VAT) | Show prices | |
| Customer Price | Show prices | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | AL : N / ECCN : N | |
| Factory Production Time | 5 Day/Days | |
| Net Weight (kg) | 3.790 Kg | |
| Packaging Dimension | 270.00 x 290.00 x 230.00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 6940408102811 | |
| UPC | Not available | |
| Commodity Code | 8504409999 | |
| LKZ_FDB/ CatalogID | SINAMICS V20 | |
| Product Group | 5681 | |
| Group Code | R220 | |
| Country of origin | China | |
| Compliance with the substance restrictions according to RoHS directive | Since: 2010.07.05 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | - | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
类别
变频器
品牌
西门子
