6ED1052-1MD08-0BA1
6ED1052-1MD08-0BA1
6ED1052-1MD08-0BA1
- 产品详情
- 产品参数

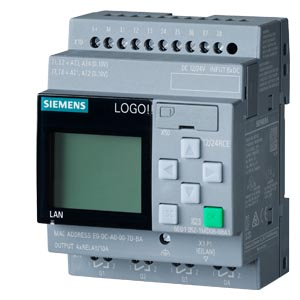

LOGO！12/24RCE，逻辑模块显示屏 SV/E/A：12/24V DC/继电器， 8 数字输入（4 模拟输入）/4 数字输出，存储器 400 块， 可模块化扩展，以太网， 集成 Web 服务器，Datalog 数据记录器， 用户自定义网站， 标准 microSD 卡 针对 LOGO! Soft 精智版，8.3 以上版本 可运行更早期的项目 所有徽标! 8.3 基本设备 中的云连接
LOGO! 12/24RCE, logic module, display PS/I/O: 12/24VDC/relay, 8 DI (4 AI)/4 DQ, memory 400 blocks, modular expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units
| 产品 | |||
| 商品编号(市售编号) | 6ED1052-1MD08-0BA1 | ||
| 产品说明 | LOGO！12/24RCE，逻辑模块显示屏 SV/E/A：12/24V DC/继电器， 8 数字输入（4 模拟输入）/4 数字输出，存储器 400 块， 可模块化扩展，以太网， 集成 Web 服务器，Datalog 数据记录器， 用户自定义网站， 标准 microSD 卡 针对 LOGO! Soft 精智版，8.3 以上版本 可运行更早期的项目 所有徽标! 8.3 基本设备 中的云连接 | ||
| 产品家族 | 订货数据总览 | ||
| 产品生命周期 (PLM) | PM300:有效产品 | ||
| 价格数据 | |||
| 价格组 / 总部价格组 | A1 / 200 | ||
| 列表价（不含税） | 显示价格 | ||
| 您的单价（不含税） | 显示价格 | ||
| 金属系数 | 无 | ||
| 交付信息 | |||
| 出口管制规定 | AL : N / ECCN : EAR99H | ||
| 工厂生产时间 | 20 天 | ||
| 净重 (Kg) | 0.269 Kg | ||
| 包装尺寸 | 8.10 x 9.30 x 7.00 | ||
| 包装尺寸单位的测量 | CM | ||
| 数量单位 | 1 件 | ||
| 包装数量 | 1 | ||
| 其他产品信息 | |||
| EAN | 4034106033637 | ||
| UPC | 195125091528 | ||
| 商品代码 | 8537101190 | ||
| LKZ_FDB/ CatalogID | STLOGO! | ||
| 产品组 | 4071 | ||
| 组代码 | R131 | ||
| 原产地 | 中国 | ||
| Compliance with the substance restrictions according to RoHS directive | RoHS 合规开始日期: 2020.09.30 | ||
| 产品类别 | A: 问题无关，即刻重复使用 | ||
| 电气和电子设备使用后的收回义务类别 | - | ||
| REACH Art. 33 责任信息 | |||
| Product | |||
| Article Number (Market Facing Number) | 6ED1052-1MD08-0BA1 | ||
| Product Description | LOGO! 12/24RCE, logic module, display PS/I/O: 12/24VDC/relay, 8 DI (4 AI)/4 DQ, memory 400 blocks, modular expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units | ||
| Product family | Ordering Data Overview | ||
| Product Lifecycle (PLM) | PM300:Active Product | ||
| Price data | |||
| Price Group / Headquarter Price Group | A1 / 200 | ||
| List Price (w/o VAT) | Show prices | ||
| Customer Price | Show prices | ||
| Metal Factor | None | ||
| Delivery information | |||
| Export Control Regulations | AL : N / ECCN : EAR99H | ||
| Factory Production Time | 20 Day/Days | ||
| Net Weight (kg) | 0.269 Kg | ||
| Packaging Dimension | 8.10 x 9.30 x 7.00 | ||
| Package size unit of measure | CM | ||
| Quantity Unit | 1 Piece | ||
| Packaging Quantity | 1 | ||
| Additional Product Information | |||
| EAN | 4034106033637 | ||
| UPC | 195125091528 | ||
| Commodity Code | 8537101190 | ||
| LKZ_FDB/ CatalogID | STLOGO! | ||
| Product Group | 4071 | ||
| Group Code | R131 | ||
| Country of origin | China | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 2020.09.30 | ||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||
| WEEE (2012/19/EU) Take-Back Obligation | - | ||
| REACH Art. 33 Duty to inform according to the current list of candidates | |||
类别
PLC
品牌
西门子
