6DR5610-0EN00-0AA0
6DR5610-0EN00-0AA0
6DR5610-0EN00-0AA0
- 产品详情
- 产品参数

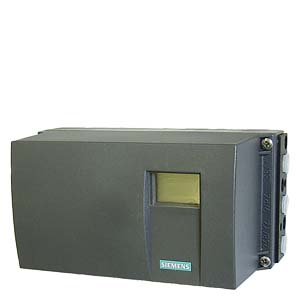

SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn actuators; FOUNDATION fieldbus operation; single action; polycarbonate enclosure Standard Type of protection (Ex): Intrinsic safety (Ex i). Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: 1/2" NPT / pneu.: 1/4" NPT Without limit monitor. Without option module. . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster.
| Product | ||
| Article Number (Market Facing Number) | 6DR5610-0EN00-0AA0 | |
| Product Description | SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn actuators; FOUNDATION fieldbus operation; single action; polycarbonate enclosure Standard Type of protection (Ex): Intrinsic safety (Ex i). Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: 1/2" NPT / pneu.: 1/4" NPT Without limit monitor. Without option module. . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster. | |
| Product family | SIPART PS2 | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group / Headquarter Price Group | 8V1 | |
| List Price (w/o VAT) | Show prices | |
| Customer Price | Show prices | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Factory Production Time | 1 Day/Days | |
| Net Weight (kg) | 0.900 Kg | |
| Packaging Dimension | 167.00 x 258.00 x 144.00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | Not available | |
| UPC | Not available | |
| Commodity Code | 84129090 | |
| LKZ_FDB/ CatalogID | FI01-5 | |
| Product Group | 4759 | |
| Group Code | R3P0 | |
| Country of origin | France | |
| Compliance with the substance restrictions according to RoHS directive | Since: 2016.12.31 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| 产品 | ||
| 商品编号(市售编号) | 6DR5610-0EN00-0AA0 | |
| 产品说明 | 智能 SIPART PS2 电气 定位器 用于 气动直行程 和 . 角行程执行机构 "单作用; 外壳：塑料" 带基金会现场总线 操作 标准型号 保护类型 (Ex): 本质安全(Ex i)。可单独订购的 SITRANS I200 输出隔离器 (7NG4131-1AA00)。 连接螺纹 1/2" NPT / 1/4" NPT 无 limit monitor. 无 option module. 使用手册: 英语，德语，汉语. 标准/故障保存 - 在电动辅助动力出现故障的情况下给执行机构减压 (single acting only). 无 Manometer block / Booster. | |
| 产品家族 | SIPART PS2 | |
| 产品生命周期 (PLM) | PM300:有效产品 | |
| 价格数据 | ||
| 价格组 / 总部价格组 | 8V1 | |
| 列表价（不含税） | 显示价格 | |
| 您的单价（不含税） | 显示价格 | |
| 金属系数 | 无 | |
| 交付信息 | ||
| 出口管制规定 | ECCN : N / AL : N | |
| 工厂生产时间 | 1 天 | |
| 净重 (Kg) | 0.900 Kg | |
| 包装尺寸 | 167.00 x 258.00 x 144.00 | |
| 包装尺寸单位的测量 | MM | |
| 数量单位 | 1 件 | |
| 包装数量 | 1 | |
| 其他产品信息 | ||
| EAN | 未提供 | |
| UPC | 未提供 | |
| 商品代码 | 84129090 | |
| LKZ_FDB/ CatalogID | FI01-5 | |
| 产品组 | 4759 | |
| 组代码 | R3P0 | |
| 原产地 | 法国 | |
| Compliance with the substance restrictions according to RoHS directive | RoHS 合规开始日期: 2016.12.31 | |
| 产品类别 | C: 产品制造/生产到订单，无法重复使用或再利用，也不能通过信用退货。 | |
| 电气和电子设备使用后的收回义务类别 | 是 | |
| REACH Art. 33 责任信息 | ||
